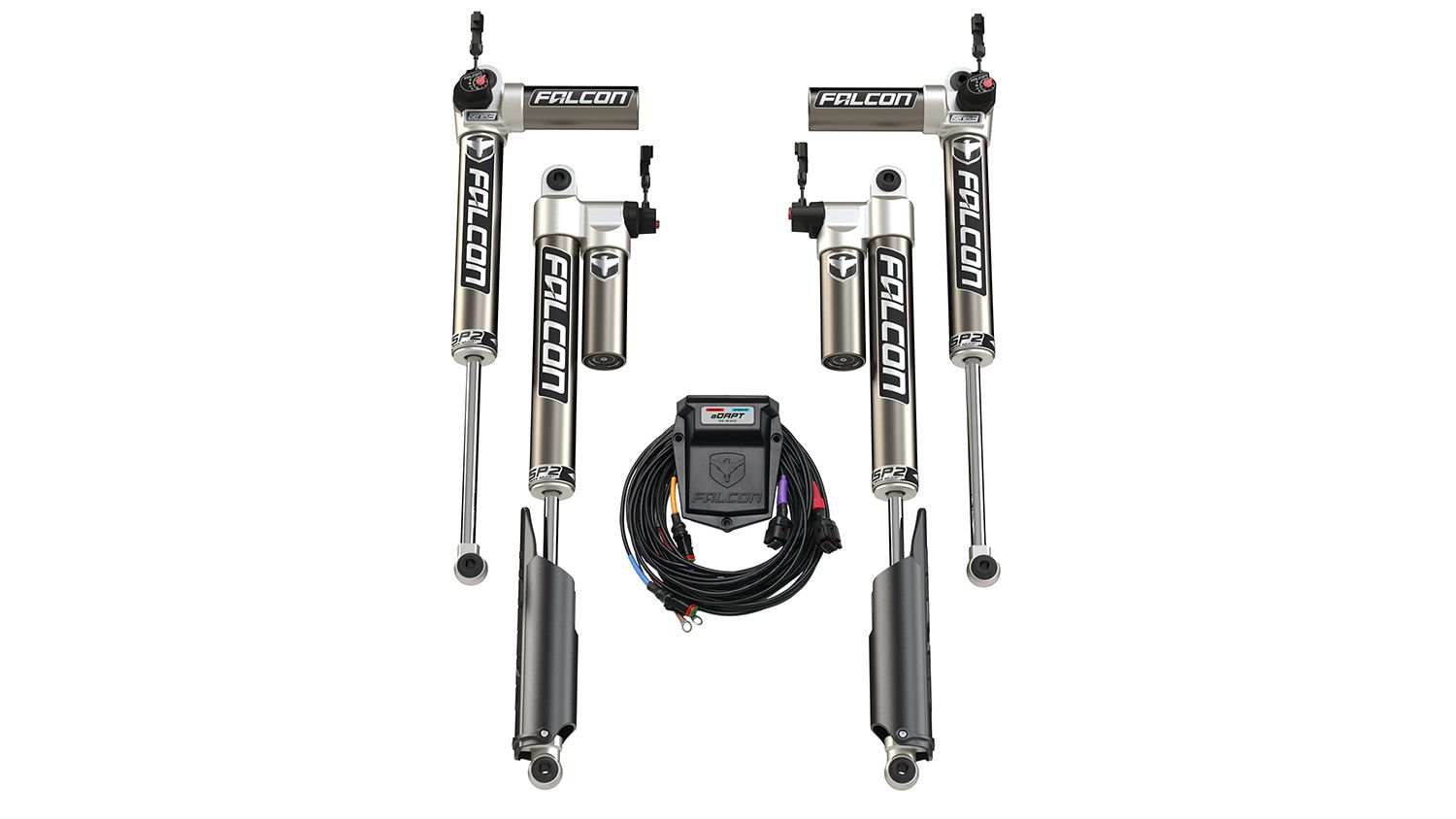

(FALCON) JEEP JT: SP2 3.5 aDAPT Piggyback Shock Kit (2–3” Lift)

Gain more control over your suspension tuning with the Falcon SP2 3.5 aDAPT Piggyback Shocks! Programable to automatically switch from Soft to a preselected Firm setting. The aDAPT Control Module’s 3-Position In-Cab Switch includes Soft, Firm, and Auto settings. The desired Firm setting is controlled by the 8-Position Micro Adjust Dials. SP2 3.5 aDAPT: • SP2 3.5 aDAPT Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics • In Auto setting, the aDAPT Control Module automatically switches from Soft to a manually preselected Firm setting based on driver selectable minimum “G” threshold • The desired Firm setting is controlled manually by the 8-Position Micro Adjust Dial • aDAPT Control Module adjustment parameters: forward acceleration, lateral acceleration, braking • Firm mode duration can be set between 1–5 seconds • 3-Position In-Cab Switch settings: Soft, Firm, Auto • aDAPT Control Module can be controlled via smartphone app • Using the Falcon App, multiple presets can be created for different driving conditions • Calibrate aDAPT Control Module for various install orientations • 8-Position Micro Adjust Dial for finer damping adjustments • Ideal for daily driven Jeeps as well as the serious enthusiast wanting automatic control and advanced tuning options from the driver seat JT: • JT corner-specific shock absorber w/ race-inspired performance • Front lower offset eyelet design provides maximum shock body to frame clearance during articulation • Rear Roost Guards prevent shock shaft damage from rocks kicked up by the tires Piggyback: • Piggyback design increases oil and gas capacity for reduced heat • Flows 6x more oil than restrictive reservoir hose designs • Eliminates common leakage issues found in banjo and swivel fittings • Front shock’s unique horizontal piggyback reservoir increases tire clearance

FEATURES & BENEFITS:

SP2 Mode Adjust:
• Choose between Soft and Performance modes during install
• Tunes both compression and rebound
• Soft mode allows a partial bypass of the main piston for a softer ride
• During aggressive driving, Soft mode retains performance tuning for optimal handling
• Soft mode recommended for rough terrain/surfaces and cold weather
• Performance mode recommended for max on- and off-road handling, stability, and control
Falcon Jeep Shocks (all):
• Vehicle-specific shock absorbers
• Race-inspired performance for increased vehicle stability
• Improved dynamic roll control and low-speed damping
• Dramatic improvement in on-road comfort and off-road performance
• Optimized fitment for unobstructed suspension travel and articulation
• 2.3” shock body provides optimal performance (Series 2 and Series 3 Shocks)
• 2.125” shock body for high value performance (1.1 Monotube Shocks)
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Smooth honed internal shock body surface for long-term performance
• 3/4” (Series 2 and Series 3 Shocks) or 1/2” (1.1 Monotube Shocks) induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• Large shaft diameter provides a wide range of adjustment on adjustable shocks
• 1-piece Teflon bronze piston wear band
• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume
• VOD reduces shock bottoming at full compression or over uneven terrain
• OGS (Oil/Gas Separator) prevents cavitation
• Red Line oil for consistent performance across all temperatures
• Synthetic formula also contains special anti-wear and lubricity agents 1,000-hour salt spray corrosion resistance test on all hardware
• Serviceable and rebuildable (factory serviced)
• Designed, engineered, CNC machined, and assembled in-house from domestic and globally sourced components
• Patented design
• 3-year warranty

Vehicle(s):
• JT Gladiator (pickup)
• JT Gladiator Mojave (pickup) w/ Front Shock Bushing Kit (# 61-99-01-001)
• Does NOT fit EcoDiesel models
Specs:
• 2–3” Lift
