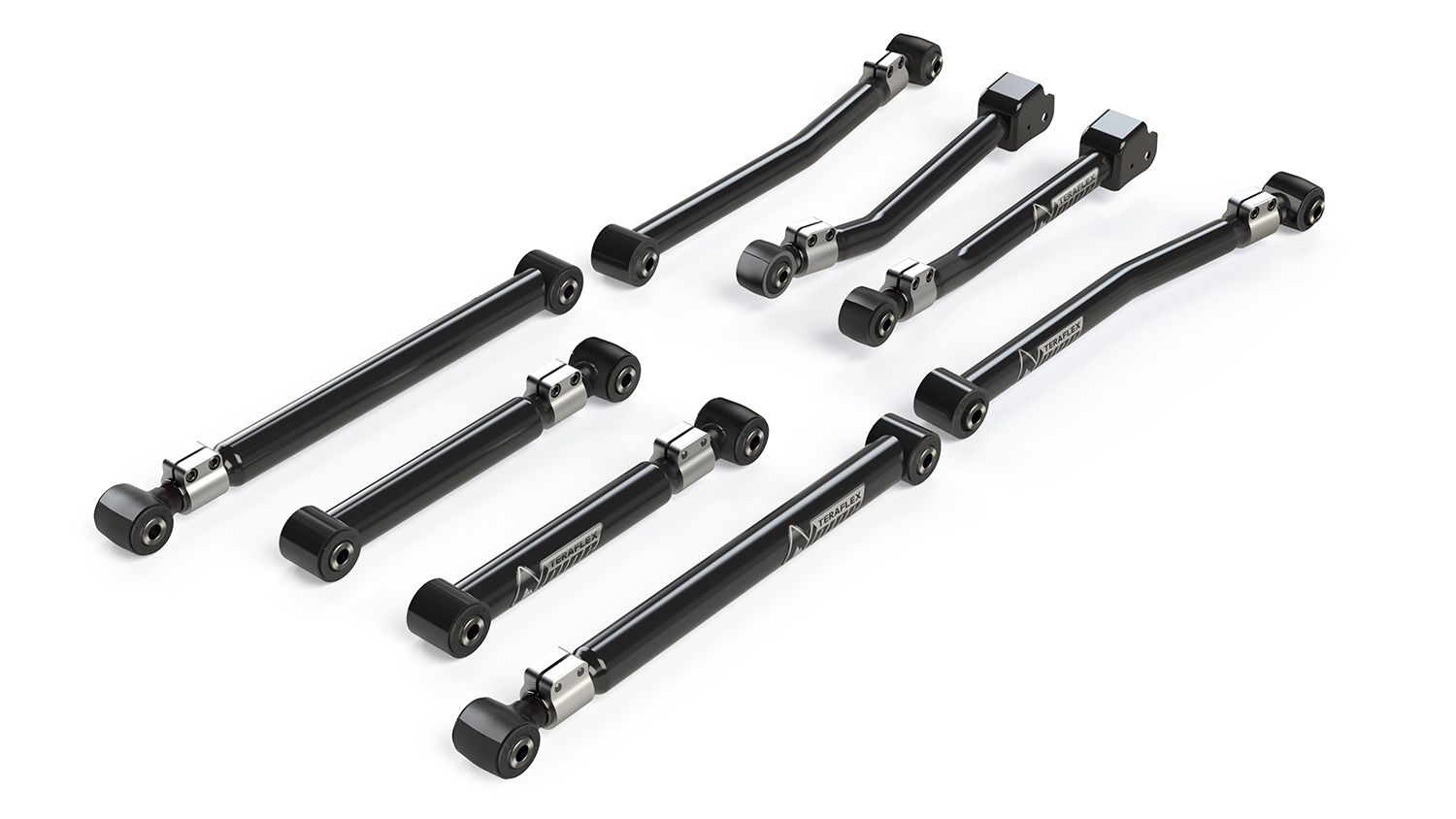

(TERAFLEX) JEEP JT(GLADIATOR) : Alpine Short Control Arm Kit – 8-Arm (0-4.5″ Lift)

TeraFlex JT: Alpine Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 0-4.5″ lifts. Bolts to the factory control arm mounting brackets. Can be added to any existing suspension lift. High-quality dependable maintenance-free factory-style bushings provide excellent NVH damping and ride quality.

FEATURES & BENEFITS:

JL / JT Alpine Short Control Arms:
• Adjustable Alpine Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 0-4.5″ lift kits
• Alpine Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
• Bolts to the factory control arm mounting brackets
JL / JT Alpine Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• Install and drive simple bolt-on installation – no welding required
• TeraFlex Lifetime Warranty against defects

FITMENT INFO:

Fits:
• JT Gladiator (pickup)
• 0-4.5″ Lift
Control Arm Specs:
JL / JT: Alpine Short Control Arm Kit – Front Upper
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 20.185″
• Min. Length = 20″
• Max. Length = 21″
• Both Ends = 14mm Bolt
JL / JT: Alpine Short Control Arm Kit – Front Lower
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length: 24″
• Min. Length: 24″
• Max. Length: 25.25″
• Both Ends: 16mm Bolt
JT: Alpine Short Control Arm Kit – Rear Upper
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 16-3/8″
• Min. Length = 16-1/8″
• Max. Length = 17-3/8″
• Both Ends = 16mm Bolt
JT: Alpine Short Control Arm Kit – Rear Lower
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 23-3/4″
• Min. Length = 23-1/2″
• Max. Length = 24-3/4″
• Both Ends = 16mm
• Both Bushings =
